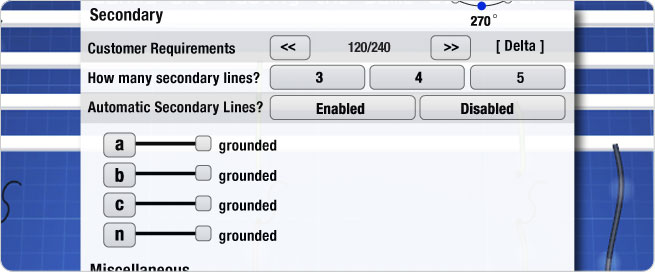

| Customer Requirements: |
|
This selection is for selecting the delivered voltage the bank is to provide to the customer. You can scroll through a selection of standard North American Customer Voltages. As you select a voltage, a description of the configuration required is shown as either a Delta or a Wye. This is the configuration needed on the secondary wires in order to provide the desired customer voltages. This will choose the desired vector later on the bottom vector wheel under the secondary selection.
|
|
| How many secondary lines: |
|
Select the number of secondary lines visible on the simulator. Additional lines will not influence the voltage output. You can choose up to 5 wires. Like the primary labels, the letters can be changed to numbers or other letters to match your standard. The placement of the neutral can be moved. If you don't ground the neutral by clicking in the grounded box, the ground will be considered to be floating.
|
|
| Automatic Secondary Lines: |
|
This will control the identification on the secondary lines by either allowing the labels to appear or by not allowing the labels to appear. |
